MIK-PH6.3 pH ORP meter

Short Description:

SUP-PH6.3 industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc. Features

  • Measure range:pH: 0-14 pH, ±0.02pH;ORP: -1000 ~1000mV, ±1mV
  • Input Resistance:≥10~12Ω
  • Power supply: 220V±10%,50Hz/60Hz
  • Output:4-20mA,RS485, Modbus-RTU,Relay


Product Detail

Product Tags

SUP-PH6. 3 industrial pH meter is an on-line pH analyzer suitable for chemical, metallurgical, environmental protection, food, agriculture and other industries. It has 4-20mA analog signal, RS-485 digital signal and relay output. It can be used for pH control of industrial process and water treatment process, and supports remote data transmission, etc.

  • Specification
  Product  pH meter, pH controller
  Model  SUP-PH6.3
  Measure range  pH:    0-14 pH, ±0.02pH
 ORP: -1000 ~1000mV, ±1mV
  Measuring medium  Liquid
  Input Resistance  ≥1012Ω
  Temp compensation  Manual/ Auto temperature compensation
  Temperature Range  -10~130℃, NTC10K or PT1000
  Communication  RS485, Modbus-RTU
  Signal output  4-20mA, maximum loop 750Ω, 0.2%FS
  Power supply  220V±10%,24V±20%,50Hz/60Hz
  Relay output  250V, 3A
  • Introduction

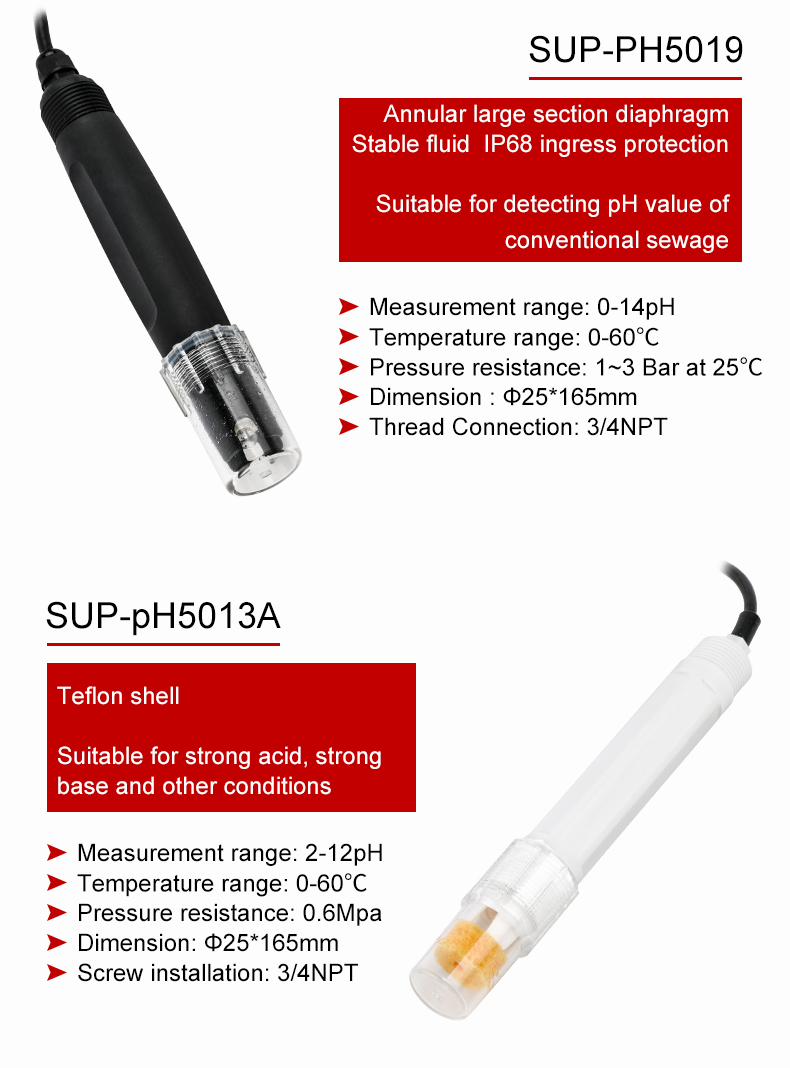

  • Choose pH electrode

Offers a full range of ph electrodes for measuring different media. Such as sewage, pure water, drinking water etc.
